General Features
General features:
- Streamlined and distinctive shape, small in size, light in weight and easy to use
- It has a slanted edge that allows you to detect in very narrow and rugged areas
- The mf-60 has an IP66 waterproof rating, where you can detect metals at a depth of up to 30 m underwater.
- The device is equipped with a 9-volt battery that allows you to use it for more than 90 continuous working hours
- The device contains sound and vibration alarms that interact with the size and proximity of the target.
- Light weight only 180 grams
- The ability to reset and calibrate with a quick response and with one click
- Fast and immediate results, no need for analysis, waiting or follow-up.
- System (ATS) automatic tuning with all types of terrain and rocky, mountainous, sandy and muddy soils.
- The device contains a flash LED light to work in poor or non-light conditions
- The advanced and accurate signal transmission and reception system (PI).
- The advanced microprocessor circuitry allows the MF 60 to operate with the highest possible sensitivity to metals
- This device is made of the best plastics, electronic components and circuits with international standards.
- Accuracy and high quality in manufacturing and performance.
![spark](http://mwf-florida.com/wp-content/uploads/2023/04/big-main-image.png)
Applications
Applications
- Searching for lost items in the garden of the house
- Identify small pieces while searching for gold nuggets
- Determine the small pieces during excavation to avoid the loss of small pieces and cash
- The small size of the device helps in accessing search places that cannot be reached through another device.
- Target detection speed and finding small metals with high accuracy
- Searching in narrow interior areas such as walls and ceilings
- It acts as a pointer to locate metal pipes, channels, rebar, etc.
![](http://mwf-florida.com/wp-content/uploads/2023/04/3.png)
![](http://mwf-florida.com/wp-content/uploads/2023/04/4.png)
Detection range
Technical Specifications
Detection system: | PI pulse induction search system |
Detection principle: | A pulse of current is sent and received, processed (repeatedly) through a coil in the search head to detect metal. |
Operating processor: | MICROCONTROLLER |
The operating frequency | 18.2KHz |
Alarm type: | Interactive audible, vibrating alarms |
Power: | 9 volt cell |
Power consumption | The maximum consumption is 200mA |
Battery working hours: | 90 actual working hours |
Specialized in detecting: | Metals of all kinds |
Search distance: | Spot detection depends on the size of the target |
Operating temperature: | From -15°C to 55°C |
Storage temperature: | From – 15 °C to 50 °C |
Humidity: | It can be stored and operated at an average humidity level of 90%. |
Weight: | Compound: 180 g |
Dimensions: | 24cm x 5cm |

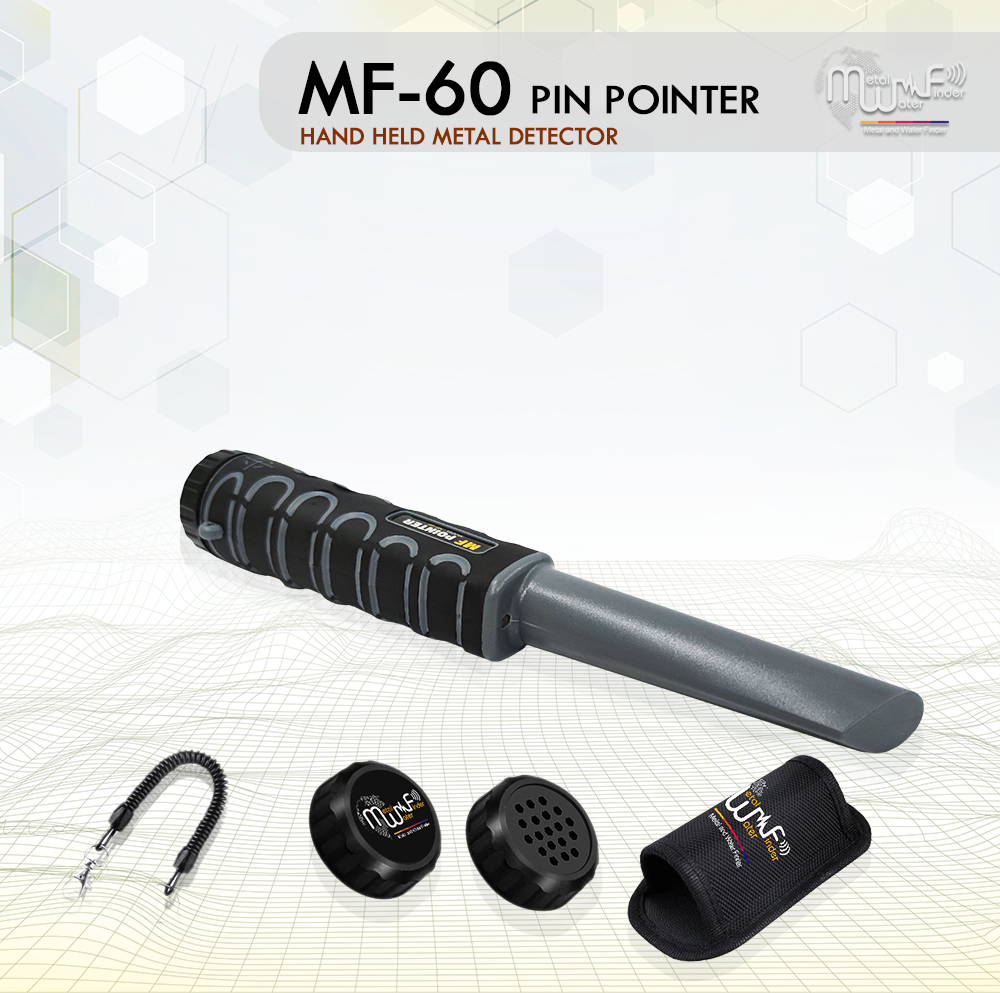

Parts & Accessories
Parts & Accessories
- main unit
- Maternity belt at the waist
- Device connecting wire
- Battery protection cover
- Device bag
- User’s Manual
- warranty card
Main Unit
Battery protection cover
Device connecting wire
Maternity belt at the waist
Device bag
User Manual
